[Spring] 게시판 만들기 #7

What to do?

게시판 화면 만들기

Dto 작성
Controller 코드 작성
Service 코드 작성

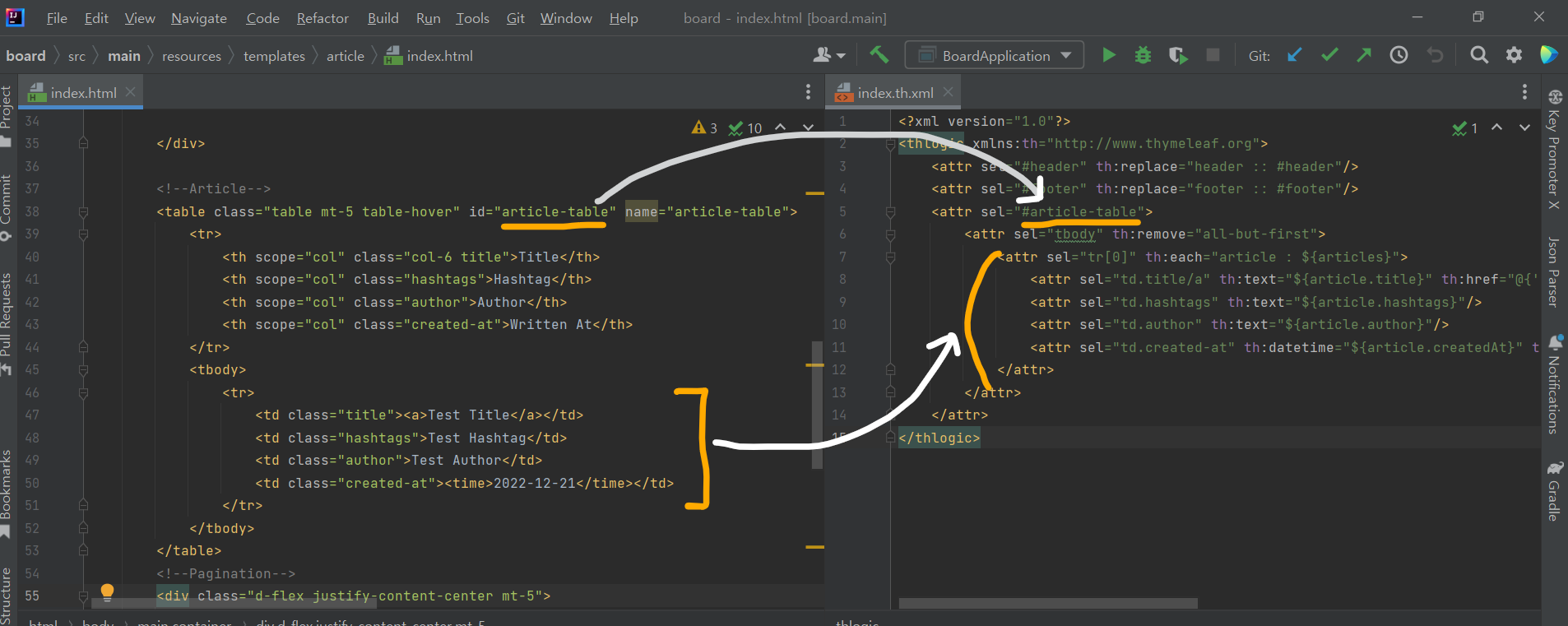

View 작성

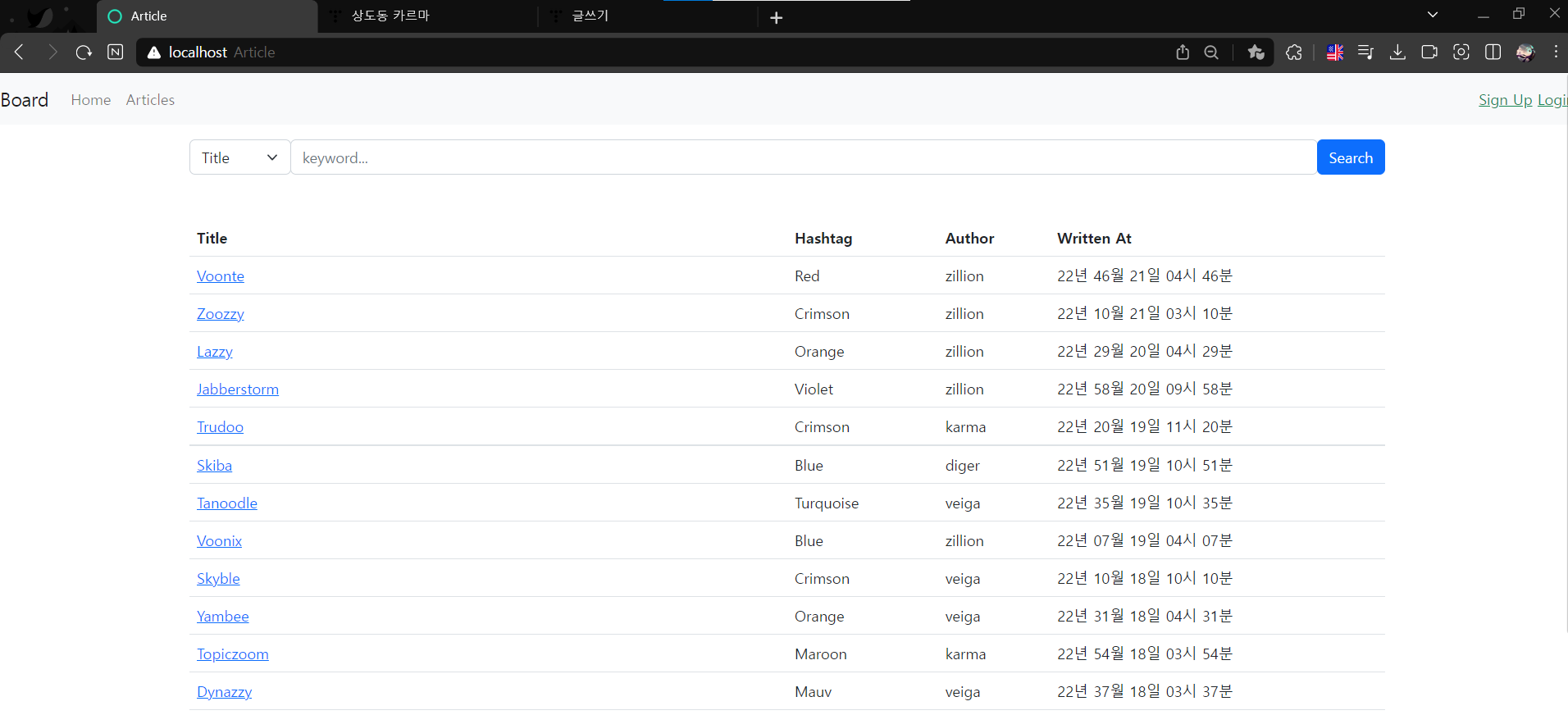

MySQL 데이터 베이스에 있는 게시글을 렌더링

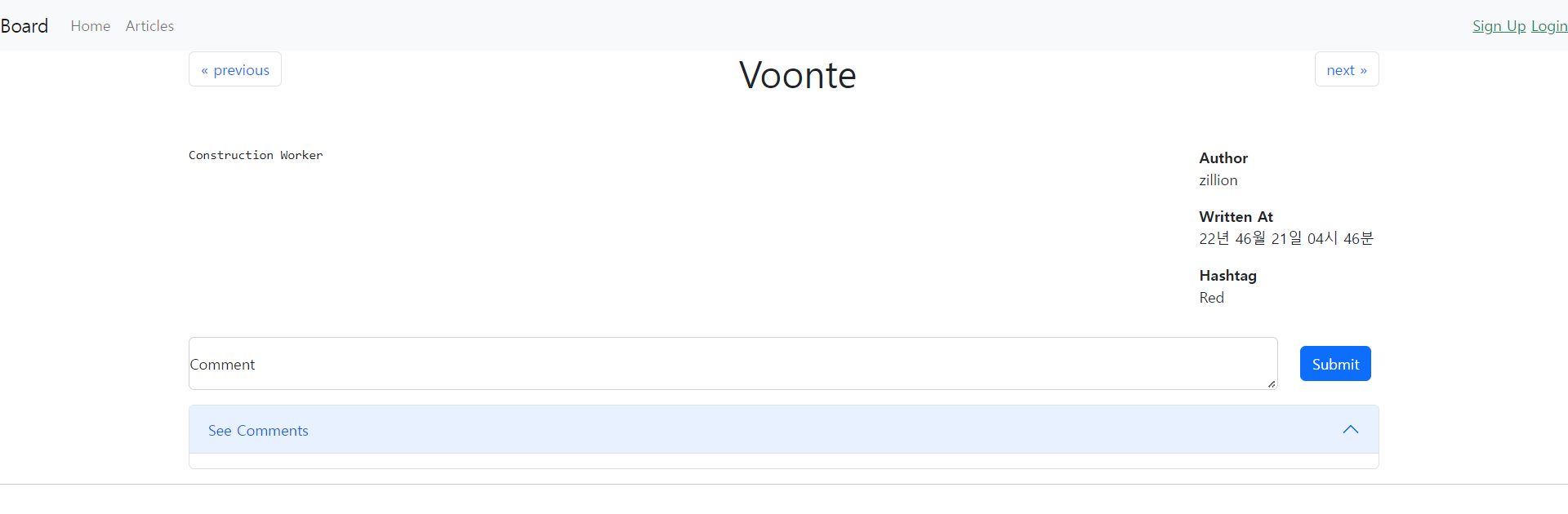

제목을 클릭하면 해당 게시글로 이동

Entity 수정

UserAccount

userAccount 필드를 추가하였고, ManyToOne annotation을 붙여줌

@ToString.Exclude @ManyToOne
private UserAccount userAccount;

resources/data.sql

Entity를 수정해주었기 때문에 기존에 작성한 data.sql 파일 때문에 에러가 난다.

Mockaroo에서 가짜 데이터를 생성하는 insert 쿼리를 작성해서 넣어주었다.

insert into user_account (email, username, password, description, created_at) values ('smeco1@i2i.jp', 'zillion', '9hy8KudbaAw', '1D4PT4GK4BW098425', '2022-08-08 12:27:28');
insert into user_account (email, username, password, description, created_at) values ('sreape@slideshare.net', 'diger', 'i82cqV', 'JM3TB2BA7B0951184', '2022-11-07 07:58:53');
insert into user_account (email, username, password, description, created_at) values ('vhadeke3@time.com', 'veiga', 'zVGf3urMlB', '1B3CC4FB5AN294974', '2022-10-08 04:00:14');
insert into user_account (email, username, password, description, created_at) values ('nsm4421@naver.com', 'karma', 'zVGf3urMlB', '1B3CC4FB5AN294974', '2022-10-08 04:00:14');


insert into article (title, content, created_at, created_by, hashtags) values ('Flashdog', 'Estimator', '2022-09-27 14:15:49', 'diger', 'Crimson');
insert into article (title, content, created_at, created_by, hashtags) values ('JumpXS', 'Project Manager', '2022-06-02 18:26:30', 'veiga', 'Green');
insert into article (title, content, created_at, created_by, hashtags) values ('Ozu', 'Electrician', '2022-10-19 06:56:32', 'karma', 'Red');
insert into article (title, content, created_at, created_by, hashtags) values ('Babbleopia', 'Surveyor', '2022-09-06 21:29:51', 'zillion', 'Red');
insert into article (title, content, created_at, created_by, hashtags) values ('Brightbean', 'Construction Expeditor', '2022-09-01 06:34:27', 'zillion', 'Turquoise');
insert into article (title, content, created_at, created_by, hashtags) values ('Layo', 'Project Manager', '2022-09-19 16:45:07', 'zillion', 'Khaki');
insert into article (title, content, created_at, created_by, hashtags) values ('Zoovu', 'Subcontractor', '2022-02-25 16:15:42', 'karma', 'Khaki');
insert into article (title, content, created_at, created_by, hashtags) values ('Flashset', 'Supervisor', '2022-09-08 21:47:20', 'diger', 'Turquoise');
insert into article (title, content, created_at, created_by, hashtags) values ('Podcat', 'Construction Manager', '2022-06-26 16:00:17', 'zillion', 'Khaki');

Dto 생성

모든 Dto는 다음과 같은 방식으로 작성하였다

implements Serializable
Factory Pattern
- 생성자는 private, protected 키워드 사용 → 외부에서 생성 불가
- of 매써드로 생성
from
- Entity → Dto로 변환하는 from 매써드 생성

UserAccountDto

@Getter
public class UserAccountDto implements Serializable {
    private String email;
    private String username;
    private String password;
    private String description;
    private RoleType roleType;

    protected UserAccountDto(){}

    private UserAccountDto(String email, String username, String password, String description, RoleType roleType) {
        this.email = email;
        this.username = username;
        this.password = password;
        this.description = description;
        this.roleType = roleType;
    }

    public static UserAccountDto of(String email, String username, String password, String description, RoleType roleType){
        return new UserAccountDto(email, username, password, description, roleType);
    }

    public static UserAccountDto from(UserAccount userAccount){
        return new UserAccountDto(
                userAccount.getEmail(), userAccount.getUsername(), userAccount.getPassword(),
                userAccount.getDescription(), userAccount.getRoleType()
        );
    }
}

ArticleWithCommentDto
- 게시글(Article)과 댓글(Comment)를 동시에 가진 Dto가 필요해서 만들어주었다.
- from 메써드는 ArticleDto, UserAccountDto, Set<CommentDto>를 인자로 받는다.

@Getter
public class ArticleWithCommentDto implements Serializable {
    private Long articleId;
    private String title;
    private String content;
    private String hashtags;
    private UserAccountDto userAccountDto;
    private LocalDateTime createdAt;
    private String createdBy;
    private Set<CommentDto> comments;

    protected ArticleWithCommentDto(){}

    private ArticleWithCommentDto(Long articleId, String title, String content, String hashtags, UserAccountDto userAccountDto,
                                 LocalDateTime createdAt, String createdBy, Set<CommentDto> comments) {
        this.articleId = articleId;
        this.title = title;
        this.content = content;
        this.hashtags = hashtags;
        this.userAccountDto = userAccountDto;
        this.createdAt = createdAt;
        this.createdBy = createdBy;
        this.comments = comments;
    }

    public static ArticleWithCommentDto of(Long articleId, String title, String content, String hashtags, UserAccountDto userAccountDto,
                                           LocalDateTime createdAt, String createdBy, Set<CommentDto> comments){
        return new ArticleWithCommentDto(articleId, title, content, hashtags, userAccountDto, createdAt, createdBy, comments);
    }

    public static ArticleWithCommentDto from(ArticleDto articleDto, UserAccountDto userAccountDto, Set<CommentDto> comments){
        return new ArticleWithCommentDto(
                articleDto.getId(), articleDto.getTitle(), articleDto.getContent(), articleDto.getHashtags(),
                userAccountDto, articleDto.getCreatedAt(), articleDto.getCreatedBy(), comments
        );
    }
}

ArticleDto

@Getter
public class ArticleDto implements Serializable {
    private Long id;
    private String title;
    private String content;
    private String hashtags;
    private LocalDateTime createdAt;
    private String createdBy;

    protected ArticleDto(){}

    private ArticleDto(Long id, String title, String content, String hashtags, LocalDateTime createdAt, String createdBy) {
        this.id = id;
        this.title = title;
        this.content = content;
        this.hashtags = hashtags;
        this.createdAt = createdAt;
        this.createdBy = createdBy;
    }

    private ArticleDto(Long id, String title, String content, String hashtags) {
        this.id = id;
        this.title = title;
        this.content = content;
        this.hashtags = hashtags;
        this.createdAt = null;
        this.createdBy = null;
    }

    public static ArticleDto of(Long id, String title, String content, String hashtags, LocalDateTime createdAt, String createdBy){
        return new ArticleDto(id, title, content, hashtags, createdAt, createdBy);
    }

    public static ArticleDto of(Long id, String title, String content, String hashtags){
        return new ArticleDto(id, title, content, hashtags);
    }

    // Entity → Dto
    public static ArticleDto from(Article article){
        return ArticleDto.of(
                article.getId(), article.getTitle(), article.getContent(), article.getHashtags(),
                article.getCreatedAt(), article.getCreatedBy()
        );
    }
}

CommentDto

@Getter
public class CommentDto {
    private String content;
    private LocalDateTime createdAt;
    private String createdBy;

    private CommentDto(String content, LocalDateTime createdAt, String createdBy) {
        this.content = content;
        this.createdAt = createdAt;
        this.createdBy = createdBy;
    }

    private CommentDto(String content) {
        this.content = content;
        this.createdAt = null;
        this.createdBy = null;
    }

    protected CommentDto(){}

    public static CommentDto of(String content, LocalDateTime createdAt, String createdBy){
        return new CommentDto(content, createdAt, createdBy);
    }

    public static CommentDto from(Comment comment){
        return CommentDto.of(
                comment.getContent(),
                comment.getCreatedAt(),
                comment.getCreatedBy()
        );
    }
 }

Spring Security

Principal

@Getter
public class MyPrincipal implements UserDetails {
    private String email;
    private String username;
    private String password;
    private String description;
    private Collection<? extends GrantedAuthority> authorities;

    private MyPrincipal(String email, String username, String password, String description, Collection<? extends GrantedAuthority> authorities) {
        this.email = email;
        this.username = username;
        this.password = password;
        this.description = description;
        this.authorities = authorities;
    }

    public static MyPrincipal of(String email, String username, String password, String description) {
        Set<RoleType> roleTypes = Set.of(RoleType.USER);    // TODO
        Collection<? extends GrantedAuthority> authorities = roleTypes
                .stream()
                .map(RoleType::getName)
                .map(SimpleGrantedAuthority::new)
                .collect(Collectors.toUnmodifiableSet());
        return new MyPrincipal(email, username, password, description, authorities);
    }

    protected MyPrincipal(){}

    //  Principal → Entity
    public UserAccount to(MyPrincipal myPrincipal){
        return UserAccount.of(
                myPrincipal.getEmail(),
                myPrincipal.getUsername(),
                myPrincipal.getPassword(),
                myPrincipal.getDescription(),
                RoleType.USER                       // TODO
        );
    }

    // Entity → Principal
    public static MyPrincipal from(UserAccount userAccount){
        return MyPrincipal.of(
                userAccount.getEmail(),
                userAccount.getUsername(),
                userAccount.getPassword(),
                userAccount.getDescription()
        );
    }

    @Override
    public boolean isAccountNonExpired() {
        return false;
    }

    @Override
    public boolean isAccountNonLocked() {
        return false;
    }

    @Override
    public boolean isCredentialsNonExpired() {
        return false;
    }

    @Override
    public boolean isEnabled() {
        return false;
    }
}

SecurityConfig
- 인증기능을 열어둘 url 지정
  - PathRequest.toStaticResources().atCommonLocations() → static 파일 (html, css, js, favicon...) 경로
  - /, "/articles", "/articles/**" → 해당 경로로 GET요청을 날리는 경우 인증이 필요하지 않음
- Spring Security에서 제공하는 기본 로그인 페이지 사용

@Configuration
public class SecurityConfig {
    @Bean
    public SecurityFilterChain securityFilterChain(
            HttpSecurity http
    ) throws Exception {
        return http
                .authorizeHttpRequests(auth -> auth
                        .requestMatchers(PathRequest.toStaticResources().atCommonLocations())
                        .permitAll()
                        .mvcMatchers(
                            HttpMethod.GET,
                            "/",
                            "/articles",
                            "/articles/**",     // TODO : 제거 (테스트를 위해 열어놓음))
                        .permitAll()
                        .anyRequest()
                        .authenticated()
                )
                .formLogin(withDefaults())
                .logout(logout -> logout.logoutSuccessUrl("/"))
                .build();
    }

    @Bean
    public UserDetailsService userDetailsService(UserAccountService userAccountService) {
        return username -> MyPrincipal.from(userAccountService.findByUsername(username));
    }

    @Bean
    public BCryptPasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }
}

Controller

MainController

/ 경로로 접속하면 /articles 경로로 redirection

@Controller
@RequestMapping("/")
public class MainController {
    @GetMapping("/")
    public String index(){
        return "redirect:/articles";
    }
}

ArticleController

게시판 페이지
- Parmas
  - SearchType : 검색방법
  - Keyword : 검색어
  - Pageable
- TODO : 한 페이지에 게시글 개수 조절

게시글 페이지
- params
  - 게시글 아이디
- TODO : 게시글 수정/삭제

@Controller
@RequestMapping("/articles")
@RequiredArgsConstructor
public class ArticleController {
    private final ArticleService articleService;
    @GetMapping
    public String articles(
            @RequestParam(required = false) SearchType searchType,
            @RequestParam(required = false) String keyword,
            @PageableDefault(size=20, sort = "createdAt", direction = Sort.Direction.DESC)Pageable pageable,
            ModelMap map){
        Page<ArticleDto> articleDtoPage = articleService.searchArticleDtoPage(searchType, keyword, pageable);
        map.addAttribute("articles", articleDtoPage.map(ArticlesResponse::from));
        return "article/index";
    }

    @GetMapping("/{articleId}")
    public String article(@PathVariable Long articleId, ModelMap map){
        ArticleWithCommentDto dto = articleService.getArticleWithCommentDto(articleId);
        map.addAttribute("article", ArticleResponse.from(dto));
        map.addAttribute("comments", CommentsResponse.from(dto));
        return "article/detail/index";
    }
}

ArticleService

게시글 조회/생성/수정/삭제

@Service
@Transactional
@RequiredArgsConstructor
public class ArticleService {

    private final UserAccountRepository userAccountRepository;
    private final ArticleRepository articleRepository;

    @Transactional(readOnly = true)
    public Page<ArticleDto> searchArticleDtoPage(SearchType searchType, String keyword, Pageable pageable){
        // 키워드가 안들어오면 전체
        if (keyword == null || keyword.isBlank()){
            return articleRepository.findAll(pageable).map(ArticleDto::from);
        }
        // 검색 유형
        return switch (searchType){
            case TITLE->articleRepository.findByTitleContaining(keyword, pageable).map(ArticleDto::from);
            case USERNAME->articleRepository.findByUserAccount_UsernameContaining(keyword, pageable).map(ArticleDto::from);
            case HASHTAG->articleRepository.findByHashtags(keyword, pageable).map(ArticleDto::from);
            case CONTENT->articleRepository.findByContentContaining(keyword, pageable).map(ArticleDto::from);
            default -> articleRepository.findAll(pageable).map(ArticleDto::from);
        };
    }
    @Transactional(readOnly = true)
    private Article findById(Long articleId){
        return articleRepository
                .findById(articleId)
                .orElseThrow(()->{throw new MyException(
                        ErrorCode.ENTITY_NOT_FOUND,
                        String.format("Article with id [%s] not founded", articleId));});
    }

    @Transactional(readOnly = true)
    public ArticleWithCommentDto getArticleWithCommentDto(Long articleId){
        Article article = findById(articleId);
        ArticleDto articleDto = ArticleDto.from(article);
        Set<CommentDto> commentDtoSet = article.getComments().stream().map(CommentDto::from).collect(Collectors.toSet());
        UserAccountDto userAccountDto;
        // Case ⅰ) Article.userAccount == null
        if (article.getUserAccount() == null){
            String username = article.getCreatedBy();
            userAccountDto = UserAccountDto.from(
                    userAccountRepository
                            .findByUsername(username)
                            .orElseThrow(()->{throw new MyException(
                                    ErrorCode.USER_NOT_FOUND,
                                    String.format("Username [%s] is not founded", username));}));
        // Case ⅱ) Article.userAccount != null
        } else {
            userAccountDto = UserAccountDto.from(article.getUserAccount());
        }
        return ArticleWithCommentDto.from(articleDto, userAccountDto, commentDtoSet);
    }

    public ArticleDto saveArticle(Article article) {
        Article savedArticle = articleRepository.save(article);
        return ArticleDto.from(savedArticle);
    }

    public ArticleDto updateArticle(Long articleId, ArticleDto articleDto){
        if (articleDto.getTitle() == null){throw new MyException(ErrorCode.INVALID_PARAMETER, "Title is null");}
        if (articleDto.getContent() == null){throw new MyException(ErrorCode.INVALID_PARAMETER, "Content is null");}
        Article article = findById(articleId);
        article.setTitle(articleDto.getTitle());
        article.setContent(articleDto.getContent());
        article.setHashtags(articleDto.getHashtags());
        return ArticleDto.from(articleRepository.save(article));
    }

    public void deleteArticle(Long articleId){
        articleRepository.delete(findById(articleId));
    }
}

View

Thymeleaf Template의 Decoupled Logic을 사용
- th.xml파일에서 controller에 받은 modelmap을 HTML에 뿌림
Thymeleaf 문법
- sel : 일반적인 selector와 동일하게 #은 id를, .(dot)은 class명
- th:text="${#temporals.format(article.createdAt, 포맷)}" 와 같이 date formating 가능

게시판페이지

articles/index.th.xml

<?xml version="1.0"?>
<thlogic xmlns:th="http://www.thymeleaf.org">
    <attr sel="#header" th:replace="header :: #header"/>
    <attr sel="#footer" th:replace="footer :: #footer"/>
    <attr sel="#article-table">
        <attr sel="tbody" th:remove="all-but-first">
            <attr sel="tr[0]" th:each="article : ${articles}">
                <attr sel="td.title/a" th:text="${article.title}" th:href="@{'/articles/'+${article.id}}"/>
                <attr sel="td.hashtags" th:text="${article.hashtags}"/>
                <attr sel="td.author" th:text="${article.author}"/>
                <attr sel="td.created-at" th:datetime="${article.createdAt}" th:text="${#temporals.format(article.createdAt, 'yy년 MM월 dd일 hh시 mm분')}"/>
            </attr>
        </attr>
    </attr>
</thlogic>

게시글 페이지

articles/detail/index.th.xml

<?xml version="1.0"?>
<thlogic xmlns:th="http://www.thymeleaf.org">
    <attr sel="#header" th:replace="header :: #header"/>
    <attr sel="#footer" th:replace="footer :: #footer"/>

    <!--Title-->
    <attr sel="#title-area" th:object="${article}">
        <!--TODO:Pagination-->
        <attr sel="#btn-next">
            <attr sel="a" th:href="@{'/articles/'+${article.id-1}}"/>
        </attr>
        <attr sel="#btn-previous">
            <attr sel="a" th:href="@{'/articles/'+${article.id+1}}"/>
        </attr>
        <attr sel="#title" th:text="*{title}"/>
    </attr>

    <!--Profile-->
    <attr sel="#profile-area" th:object="${article}">
        <attr sel="#author" th:text="*{author}"/>
        <attr sel="#created-at" th:datetime="*{createdAt}" th:text="${#temporals.format(article.createdAt, 'yy년 MM월 dd일 hh시 mm분')}"/>
        <attr sel="#hashtags" th:text="*{hashtags}"/>
    </attr>

    <!--Body-->
    <attr sel="#content" th:text="${article.content}"/>

    <!--Write Comment-->
    <attr sel="#write-comment-area">
        <!--TODO:Submit Comment-->
    </attr>

    <!--See Comments-->
    <attr sel="#article-comments">
        <attr sel="li" th:remove="all-but-first">
            <attr sel="div" th:each="comment : ${comments.comments}">
                <attr sel="strong" th:text="*{createdBy}"/>
                <attr sel="small/time" th:datetime="*{createdAt}" th:text="${#temporals.format(comment.createdAt, 'yy년 MM월 dd일 hh시 mm분')}"/>
                <attr sel="p" th:text="*{content}"/>
            </attr>
        </attr>
    </attr>
</thlogic>

'Java > Spring' 카테고리의 다른 글

[Spring] 게시판 만들기 #9 (0)	2022.11.23
[Spring] 게시판 만들기 #8 (0)	2022.11.23
[Spring] 게시판 만들기 #6 (0)	2022.11.21
[Spring] 게시판 만들기 #5 (0)	2022.11.14
[Spring] 게시판 만들기 #4 (0)	2022.11.13

Karma

[Spring] 게시판 만들기 #7

What to do?

게시판 화면 만들기

Entity 수정

UserAccount

resources/data.sql

Dto 생성

Spring Security

Controller

MainController

ArticleController

ArticleService

View

게시판페이지

게시글 페이지

'Java > Spring' 카테고리의 다른 글

티스토리툴바

[Spring] 게시판 만들기 #7

What to do?

게시판 화면 만들기

Entity 수정

UserAccount

resources/data.sql

Dto 생성

Spring Security

Controller

MainController

ArticleController

ArticleService

View

게시판페이지

게시글 페이지

'Java > Spring' 카테고리의 다른 글

'Java/Spring' Related Articles

티스토리툴바
